Mozzie

Small, Fast, Stinging…and a nasty Sound - THE MOZZIE

After getting the hands on some RCX 1105 motors with 5000kv I had to build a matching quad to give them a nice home. A mixture between the Triceratops and the Afro125 was born. Bit smaller now, as the RotorX 2,5inch quad-props will be used.

This thing is a real rocket! Lots of power with the 1105 Motors and flying really good with Raceflight on the Revo. Image quality with the HMCAM700 was crappy, changed it to the new Eachine CCD which gives a great image for the low price and small size. DIY Receiver was changed to an FrSky XRS, as i had some range problems when flying too low in the gras ;_)

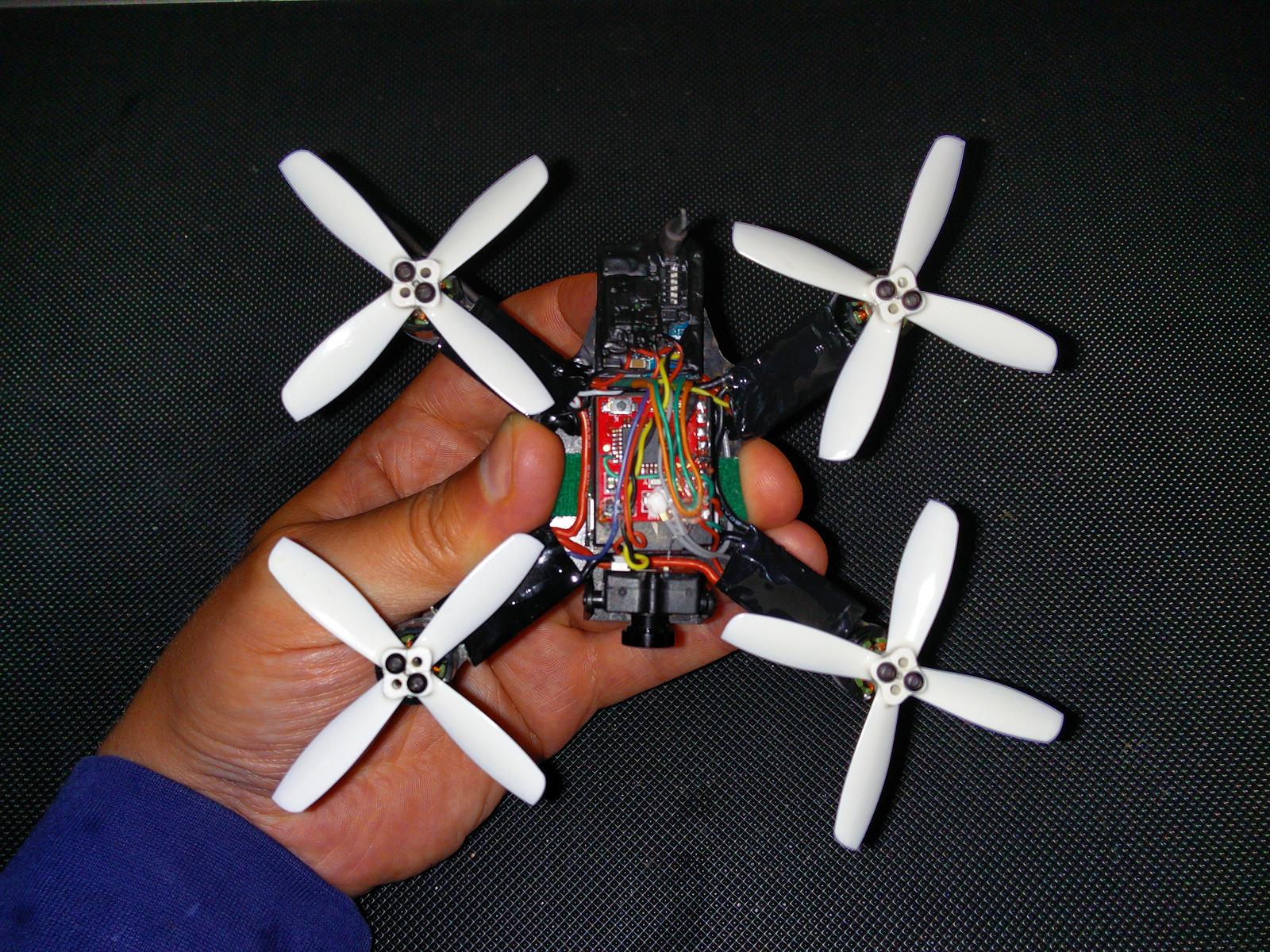

Pics:

Settings:

Motor Specs

Specification Specification Item name: H1105 V2 KV: 5000KV Weight (g): Approx 5.5g Configuration: 9N12P Shaft Diameter: 1.5mm Stator Diameter: 11mm Stator Length: 5mm Motor Dimensions: 1413mm Cells(Lipo): 2-3S Internal Resistance: – @ 10V No-Load Current: –A @ 10V Cable Length: ~10cm (Soft AWG) Screw: M2*3 (Base) M2*6 (Top)
