3inch 1404

As i got myself a set of DJI FPV Goggles i needed a small quad to test the new HD system. I had some 1404 Motors and a Whoop style Board lying around, so i cut a slightly modified 3„ Sanchez frame and printed a nice TPU canopy found on thingiverse.

A 2nd backup frame has been build with other parts i had around: Flightcontroller: Crazybee F4 PRO V3.0, Motors: 4x RCX H1304 5000KV.

3 Others for friend of mine have been build using either the JHEMCU GHF13 AIO or the JHEMCU GHF411AIO Pro. They are all running the Happymodel EX1404 4800KV motors with GemFan 3016 props.

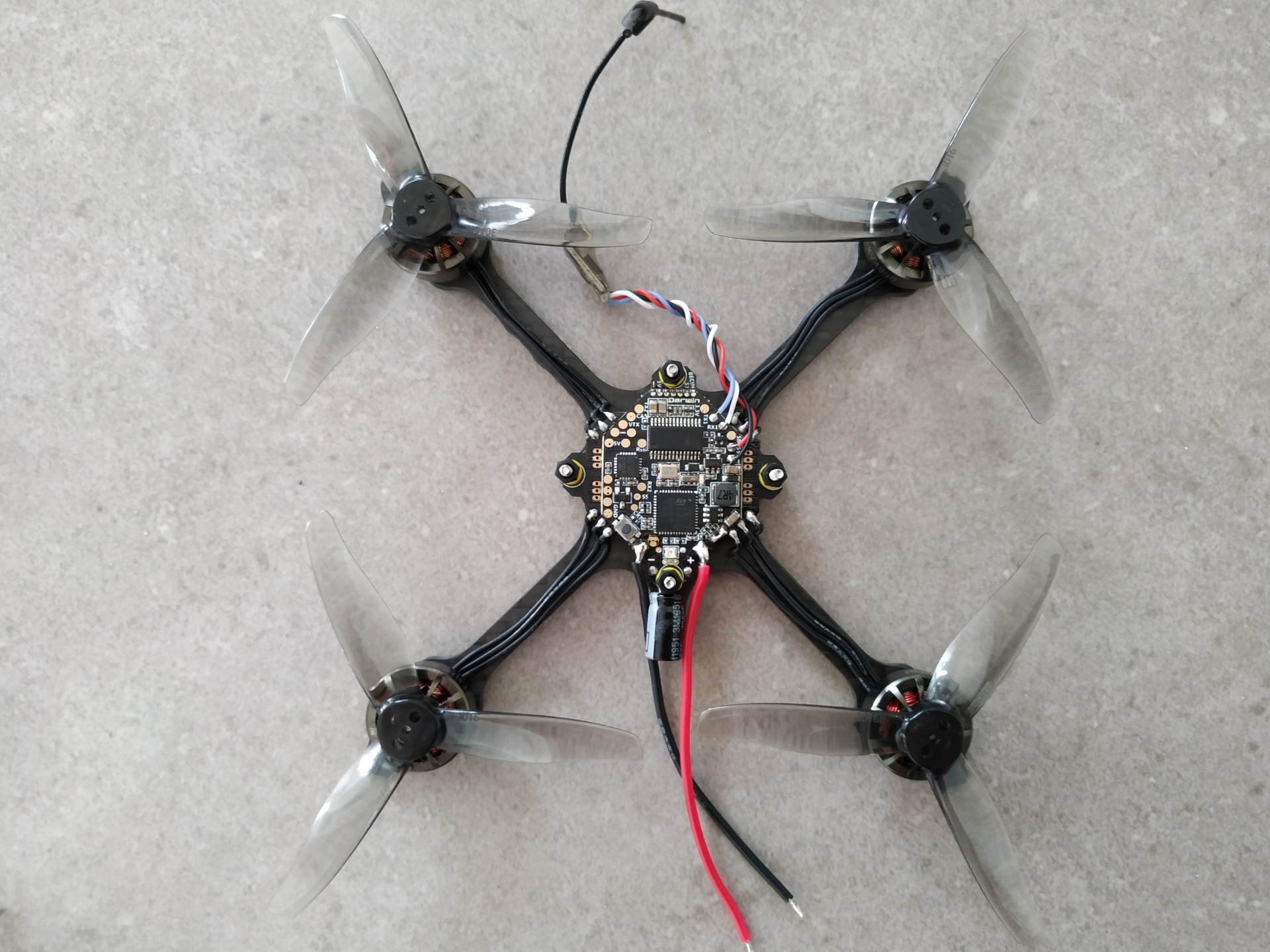

Pics:

Settings:

Use Custom Betaflight for BF warnings on DJI OSD

Settings for the GHF13 Board

#

# diff all

# version
# Betaflight / STM32F411 (S411) 4.2.8 Mar 19 2021 / 21:01:25 (norevision) MSP API: 1.43
# config: manufacturer_id: MTKS, board_name: MATEKF411, version: be0c9205, date: 2020-01-15T19:44:32Z

# start the command batch
batch start

# reset configuration to default settings
defaults nosave

board_name MATEKF411
manufacturer_id MTKS
mcu_id 004e00523235511832333634
signature

# name: dragonfrog

# resources
resource SERVO 1 A00
resource LED_STRIP 1 NONE
resource SERIAL_TX 11 A08
resource SERIAL_RX 11 A08

# serial
serial 0 1 115200 57600 0 115200
serial 1 64 115200 57600 0 115200
serial 30 2 115200 57600 0 115200

# aux
aux 0 0 0 1700 2100 0 0
aux 1 1 1 900 1300 0 0
aux 2 2 1 1300 1700 0 0
aux 3 13 3 1700 2100 0 0

# master
set acc_calibration = 1,-9,-105,1
set rssi_channel = 16
set serialrx_provider = CRSF
set failsafe_switch_mode = STAGE2
set bat_capacity = 850
set vbat_scale = 112
set ibata_scale = 309
set gps_auto_config = OFF
set gps_rescue_min_sats = 5
set gps_rescue_allow_arming_without_fix = ON
set report_cell_voltage = ON
set osd_warn_rssi = ON
set osd_warn_dji = ON
set osd_cap_alarm = 800
set osd_vbat_pos = 2419
set osd_rssi_pos = 2197
set osd_link_quality_pos = 121
set osd_rssi_dbm_pos = 89
set osd_tim_2_pos = 407
set osd_flymode_pos = 2183
set osd_vtx_channel_pos = 65
set osd_crosshairs_pos = 2286
set osd_current_pos = 2374
set osd_mah_drawn_pos = 2406
set osd_craft_name_pos = 2224
set osd_warnings_pos = 14794
set osd_avg_cell_voltage_pos = 2387
set osd_stat_max_spd = OFF
set osd_stat_bbox = OFF
set osd_stat_bb_no = OFF
set gyro_1_align_yaw = 1800
set name = dragonfrog

profile 0

profile 1

profile 2

# restore original profile selection
profile 0

rateprofile 0

rateprofile 1

rateprofile 2

rateprofile 3

rateprofile 4

rateprofile 5

# restore original rateprofile selection
rateprofile 0

# save configuration
save
#
